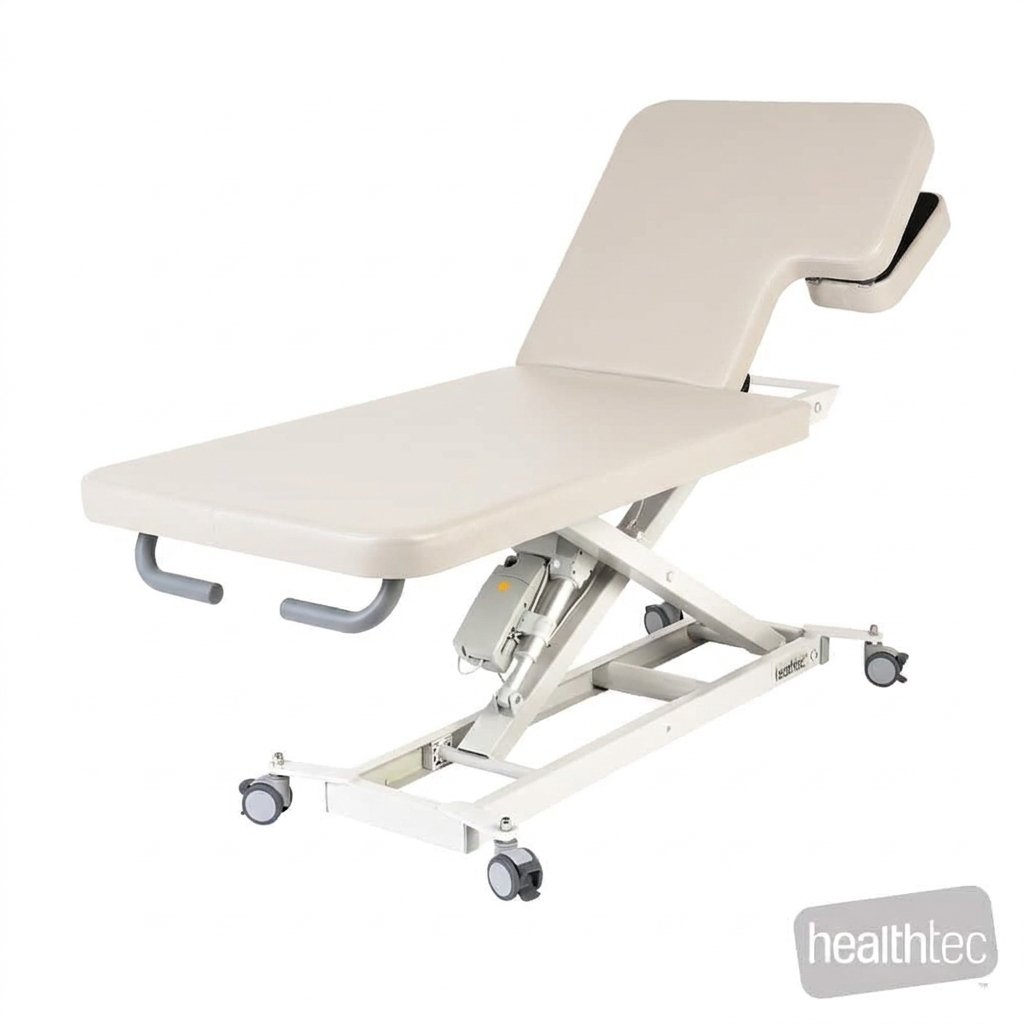

LynX Cardiology Table (Backrest Section Cut-Out) - Electric Backrest
Give Your Cardiology Room Clean Backrest Access, No Second Table Needed
The LynX Cardiology Table (Backrest Section Cutout) is built around a single cutout in the backrest upholstery, so your team gets Echo-style transducer access from behind the patient without swapping to a second table or repositioning them twice.
Lead time: Custom built to order by the manufacturer. Please allow up to 8 weeks for dispatch. Because it is made to your specification, this item is non-refundable for change of mind. Your rights under the Australian Consumer Law for faulty goods still apply.
Why Clinics Choose the LynX Cardiology Table (Backrest Cutout)
- Purpose-built backrest cutout gives clean transducer or lead access for cardiac-style procedures, opened and held on magnetic catches so staff set it up in seconds.

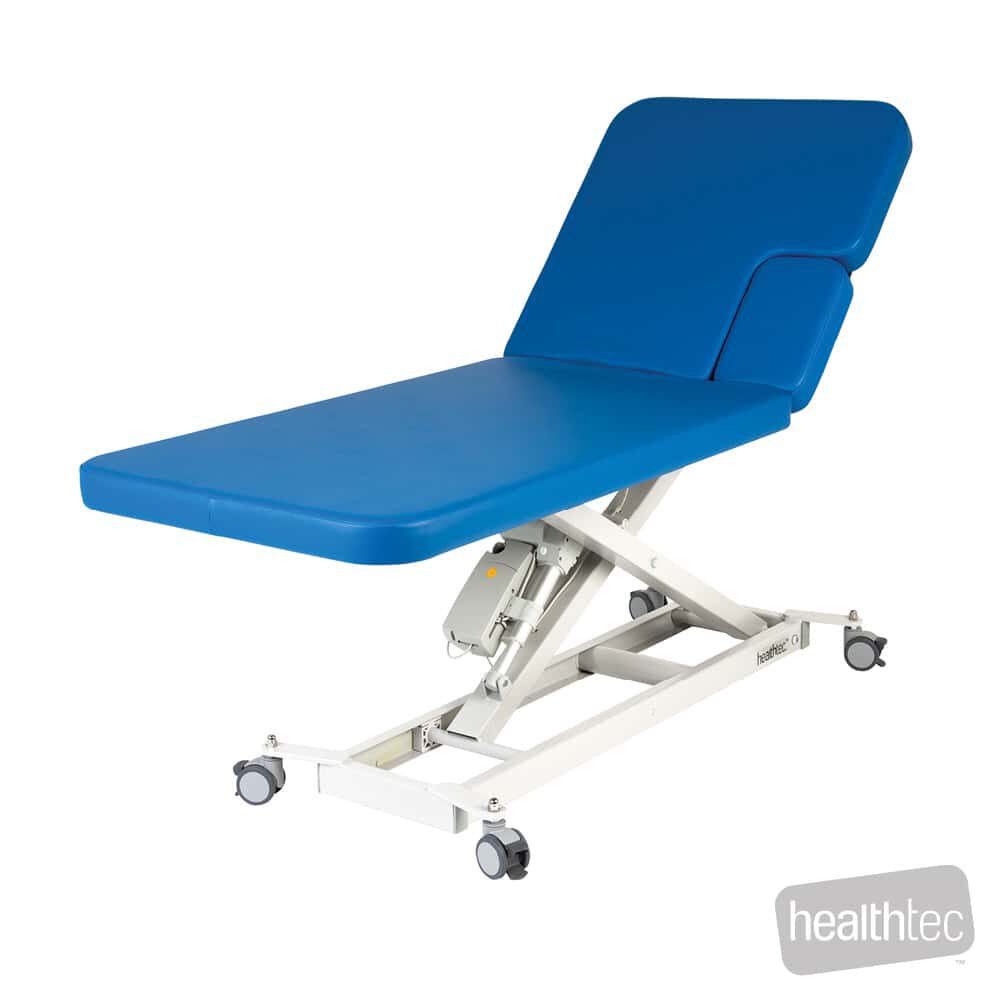

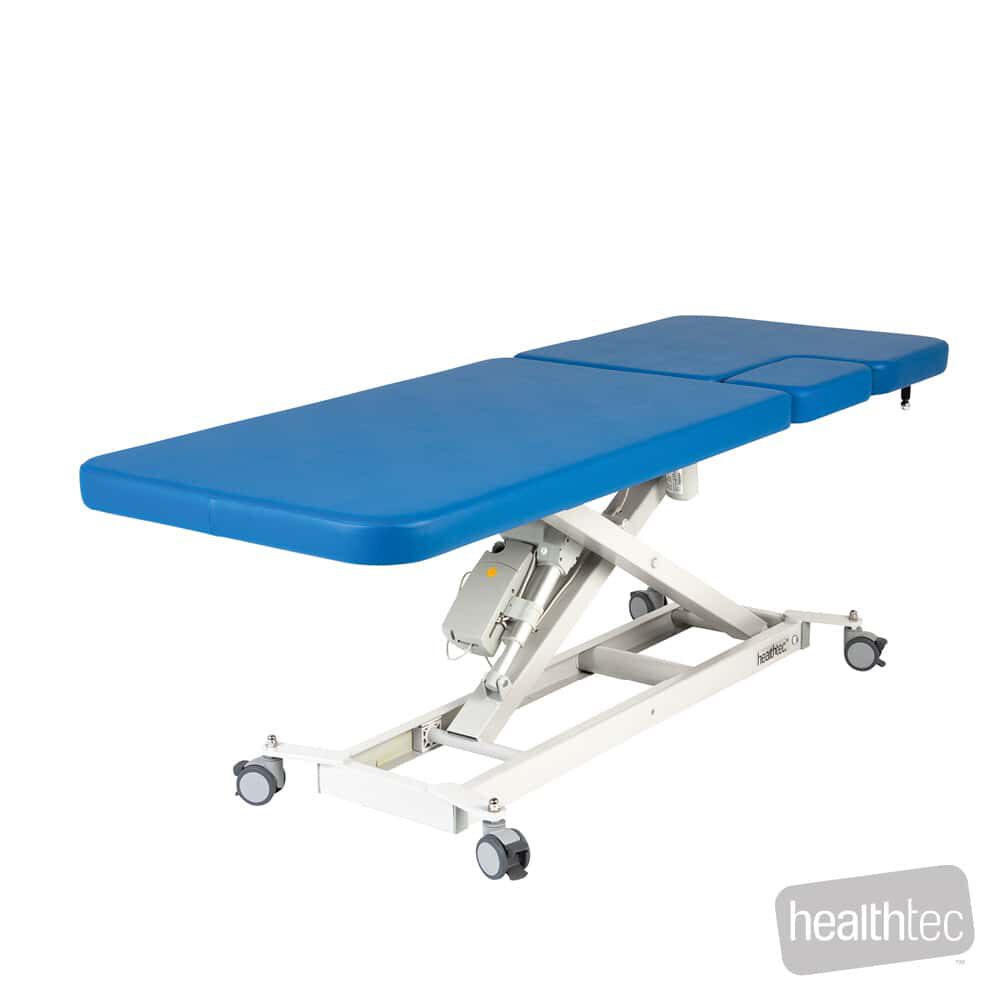

- Electric backrest adjusts flat to +70 degrees, moving the patient from semi-reclined to seated for a consult without any manual lifting.
- Electric height adjustment via foot switch brings the table to the right working height for the clinician, hands free, mid-procedure.
- Heavy duty individually lockable castors on an X-Frame base keep the table stable during the exam and easy to reposition between rooms.
Your Clinic, with the LynX Cardiology Table (Backrest Cutout)
A cardiac patient is booked in for an Echo-style scan. The backrest cutout opens on its magnetic catches, giving the sonographer clean access from behind without asking the patient to shift position. Once the scan wraps up, close the cutout and drop the backrest flat with the foot switch for the next booking on the list. One table, one setup, no gap in the room while staff swap equipment.
The LynX Cardiology Table (Backrest Cutout) in a Nutshell
- Backrest-only cutout: a single, purpose-built opening in the backrest section, distinct from the body-section-only or dual-cutout LynX models in this range.
- 710mm or 760mm width: step up to the wider table for a larger cutout area where procedures need extra patient access.

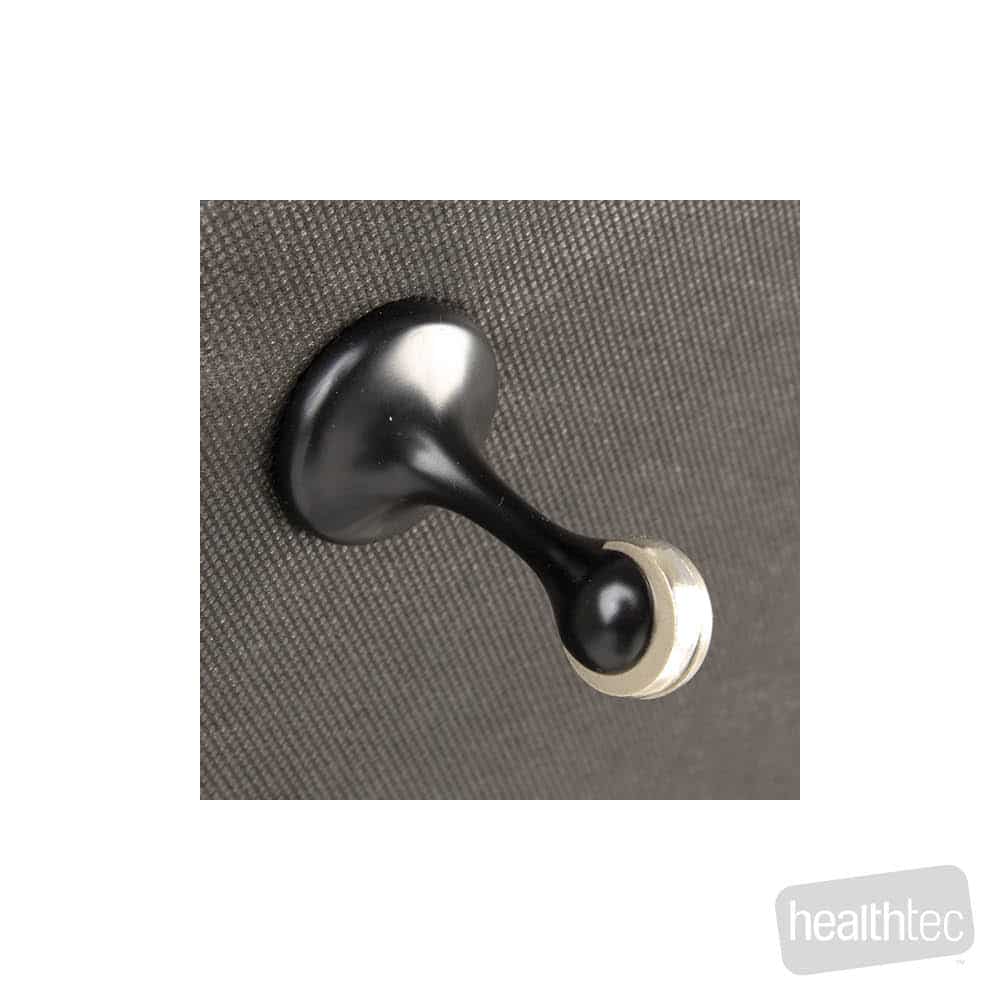

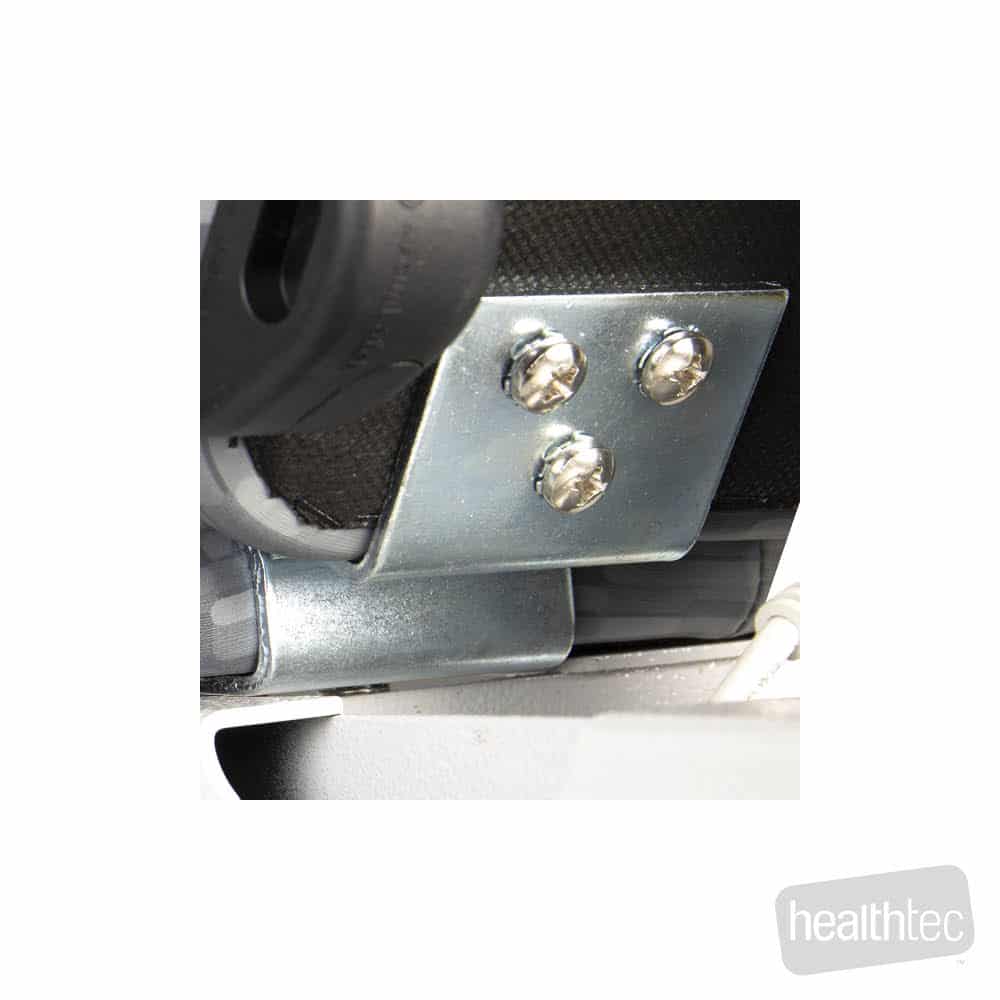

- Magnetic catch cutout cover: opens manually and holds in place on magnetic catches, so staff can set access in seconds between patients.
- Australian designed and manufactured: backed by a 10 year structural warranty on the base and frame, 5 year electrical and 3 year upholstery cover.

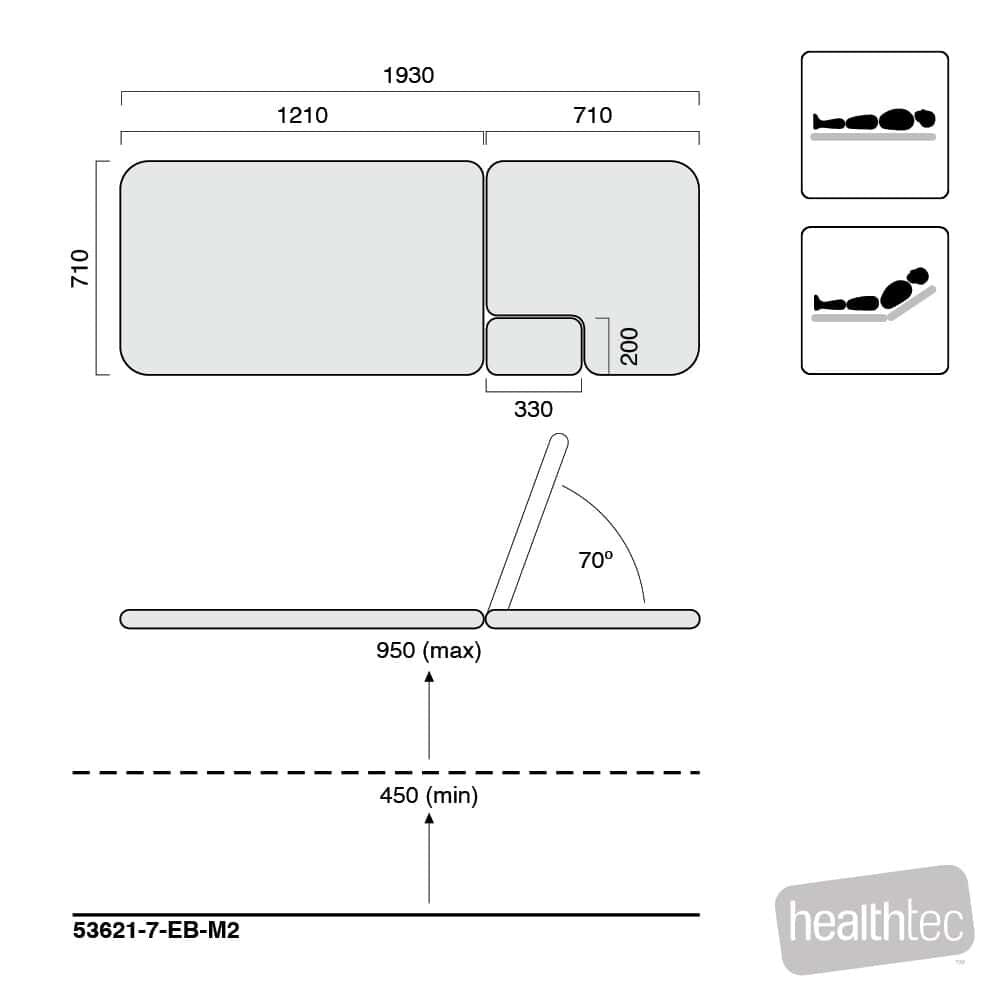

LynX Cardiology Table (Backrest Cutout) Specifications
| Load & Capacity | |
|---|---|
| Maximum working load | 400kg (stationary) |
| Maximum lifting capacity | 250kg (moving) |
| Dimensions | |
| Minimum working height | 450mm |
| Maximum working height | 950mm |
| Table width | 710mm (760mm width option available for a larger cutout area) |
| Table length | 1840mm |
| Weight | 80kg |
| Shipping dimensions | 205 × 85 × 65cm |
| Build | |
| Cushioning | 50mm foam (75mm Comfort Foam upgrade available) |
| Controller | Foot switch |
| Base/castor | LynX X-Frame with heavy duty individually lockable castors |
| Backrest | Electronically adjustable, flat to +70° |
| Cutout | Backrest section only, manually opens and holds with magnetic catches |
| Warranty | |
| Structural | 10 years (base and frame) |
| Electrical | 5 years |
| Upholstery | 3 years |
Not Sure Which Cardiology Table Suits You?
Email us how you plan to use it, such as your room, the treatments you run and the patients you see. We will research the options and reply in writing with the best fit for your needs.
Email us - support@mobilityshopdirect.com.au
LynX Cardiology Table (Backrest Cutout) Documents and Materials
Read the Austex Fabrics Care Instructions for cleaning and upholstery care guidance.

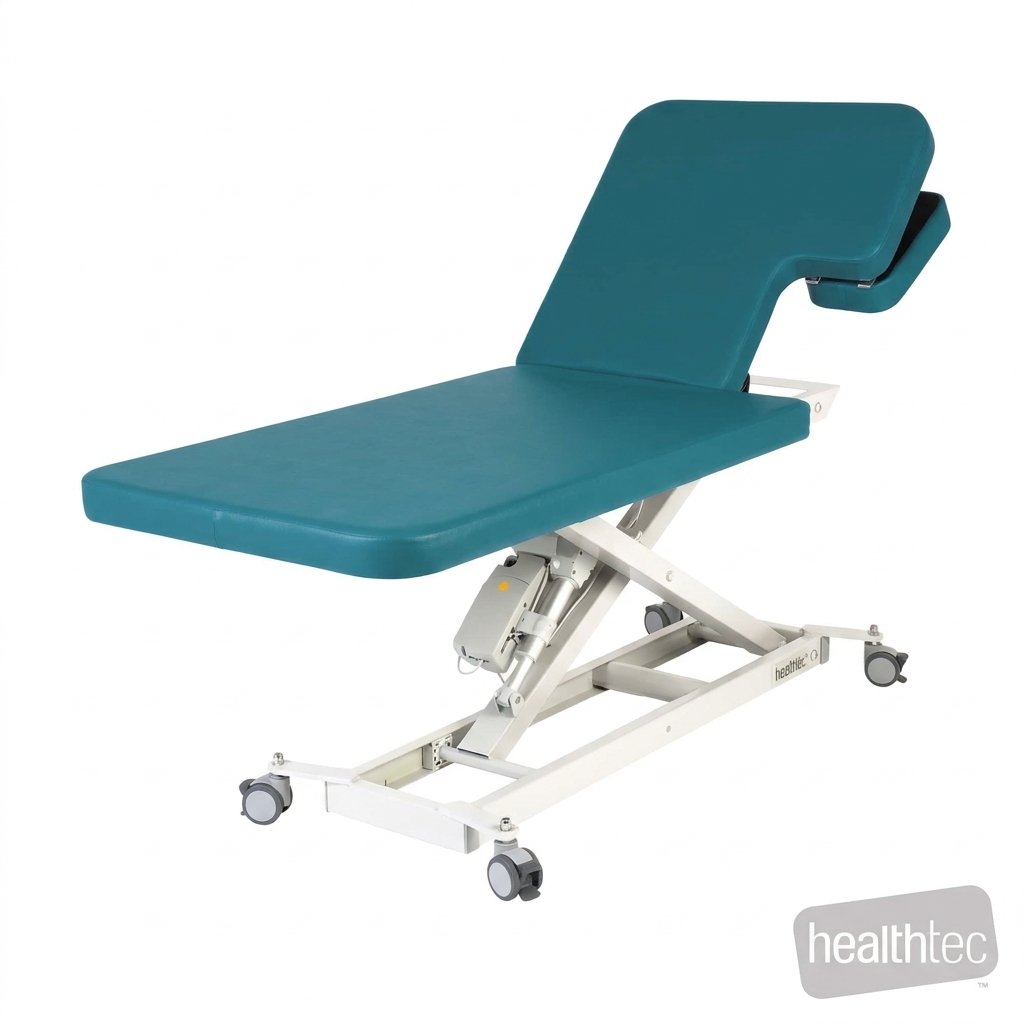

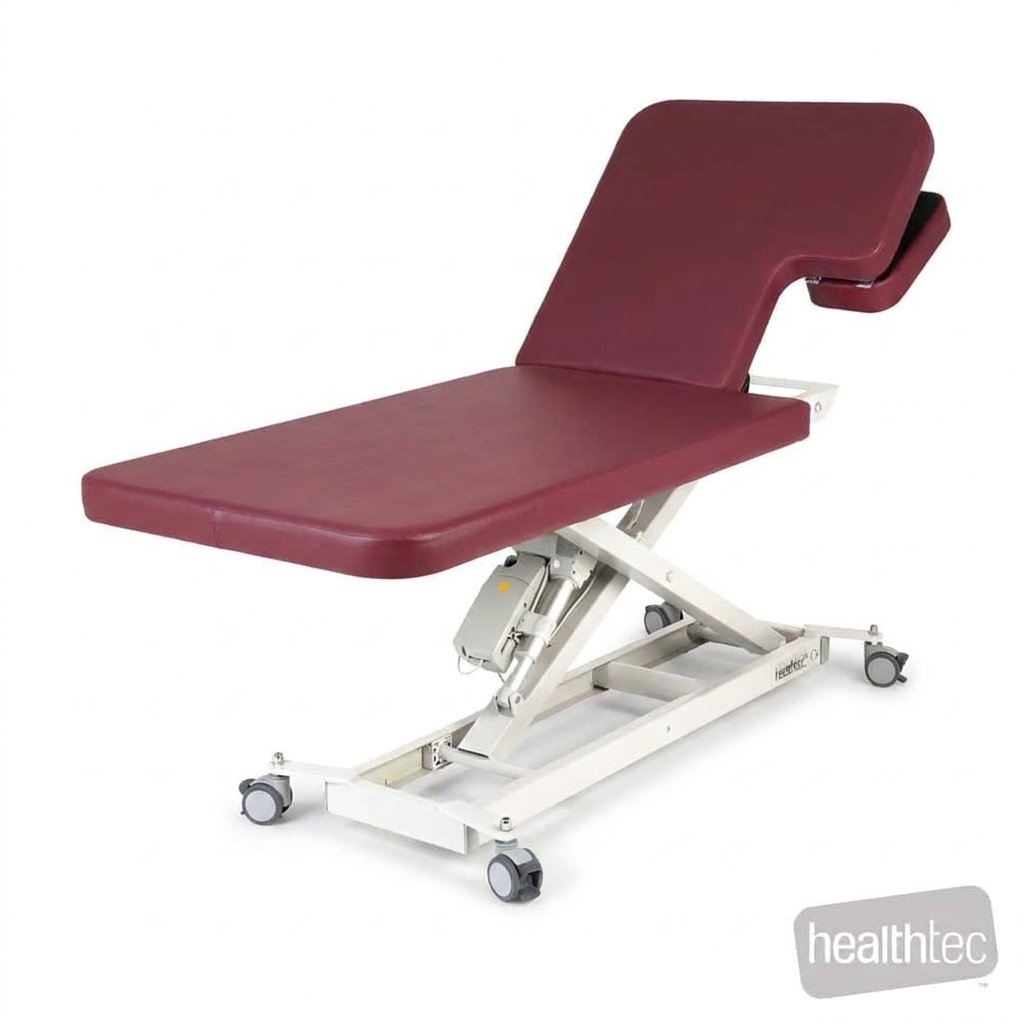

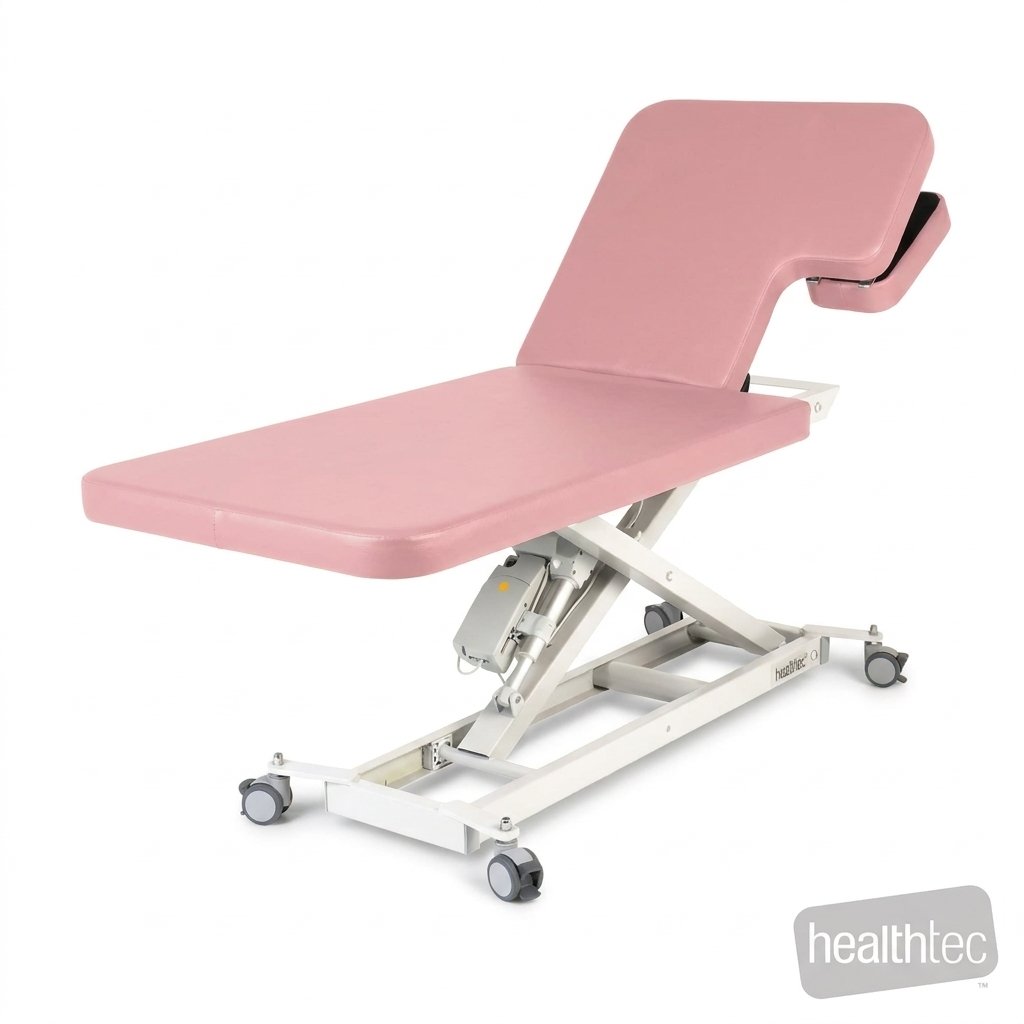

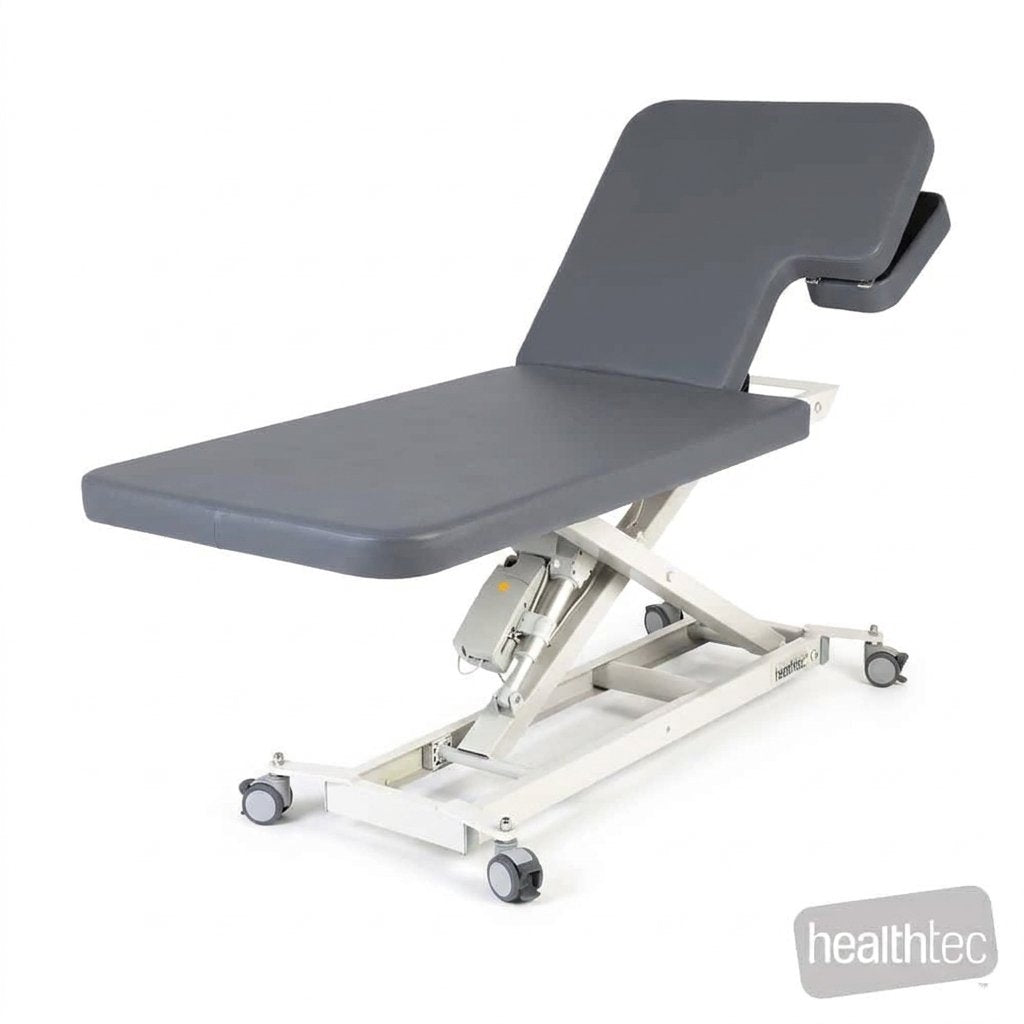

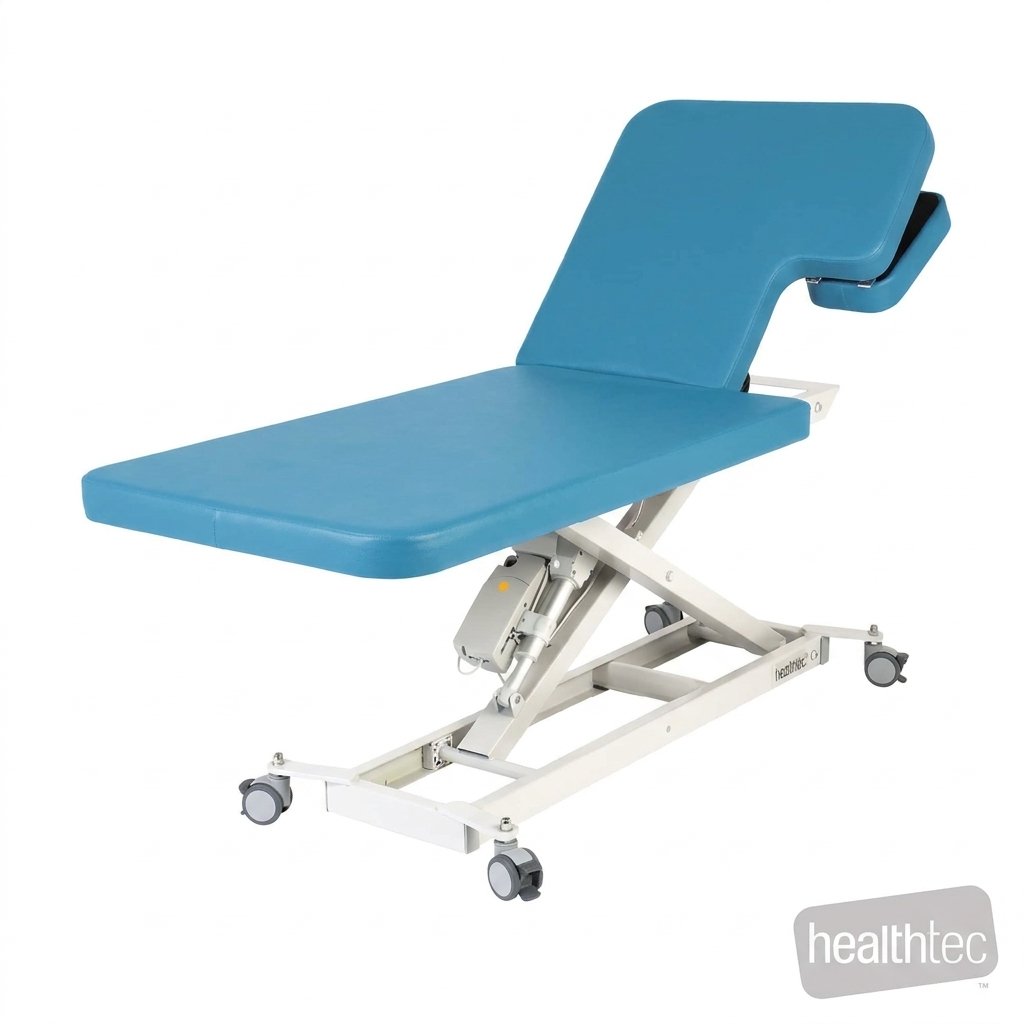

Upholstery colours
The LynX Cardiology Table (Backrest Section Cut-Out) - Electric Backrest is upholstered in Austex Studio+ vinyl, and you choose from 12 popular colours when you order. The manufacturer offers other Austex Studio+ colours too, so contact us if you'd like one that isn't listed. The colour photos on this page are AI-generated previews made from the manufacturer's own product photo, so treat the on-screen colour as a guide only. See the full official palette on the Austex Studio+ colour page.
Delivery
Standard delivery is included in the price. It is made to order and ships direct from the manufacturer.
Tailgate delivery (included)
A one-person delivery to the nearest entrance of your building. The packed table is heavy, so have at least two people ready to move it inside. Packaging isn't removed with this service. The carrier is asked to phone before arrival, but that call isn't guaranteed.
Premium 2-man delivery (+$300)
Two people deliver the table into your room, unpack it, put it in position and take all the packaging away. A delivery time is arranged with you beforehand. Choose Premium 2-Man Delivery from the Delivery options above, and tell us about any access problems such as spiral stairs, narrow doorways or low ceilings, because the price doesn't cover them.
Delivery times and unpacking
Deliveries are made by external carriers between 9am and 5pm, so an exact time can't be given. It arrives on a pallet, wrapped to protect it in transit. Read the service manual that comes with it before first use.
Prefer your own freight company? Email us to arrange it.
Warranty
The manufacturer's warranty covers parts only:
- 10 years structural: steel frame parts
- 5 years electrical: actuator motors, control box, hand switch and foot switch, where fitted
- 3 years upholstery: fabric defects, colour inconsistency, foam compression and stitching
- 3 years paint: paint adhesion on steel parts
- 1 year parts: castors, gas struts, brackets, hinges, fasteners and bearings, where fitted
- 1 year batteries: backup batteries, where fitted
The warranty doesn't cover loads above the rated capacity, everyday wear or impact damage, poor maintenance, servicing by non-approved technicians, power surges or storms, or upholstery damaged by unsuitable cleaners or chemicals.
