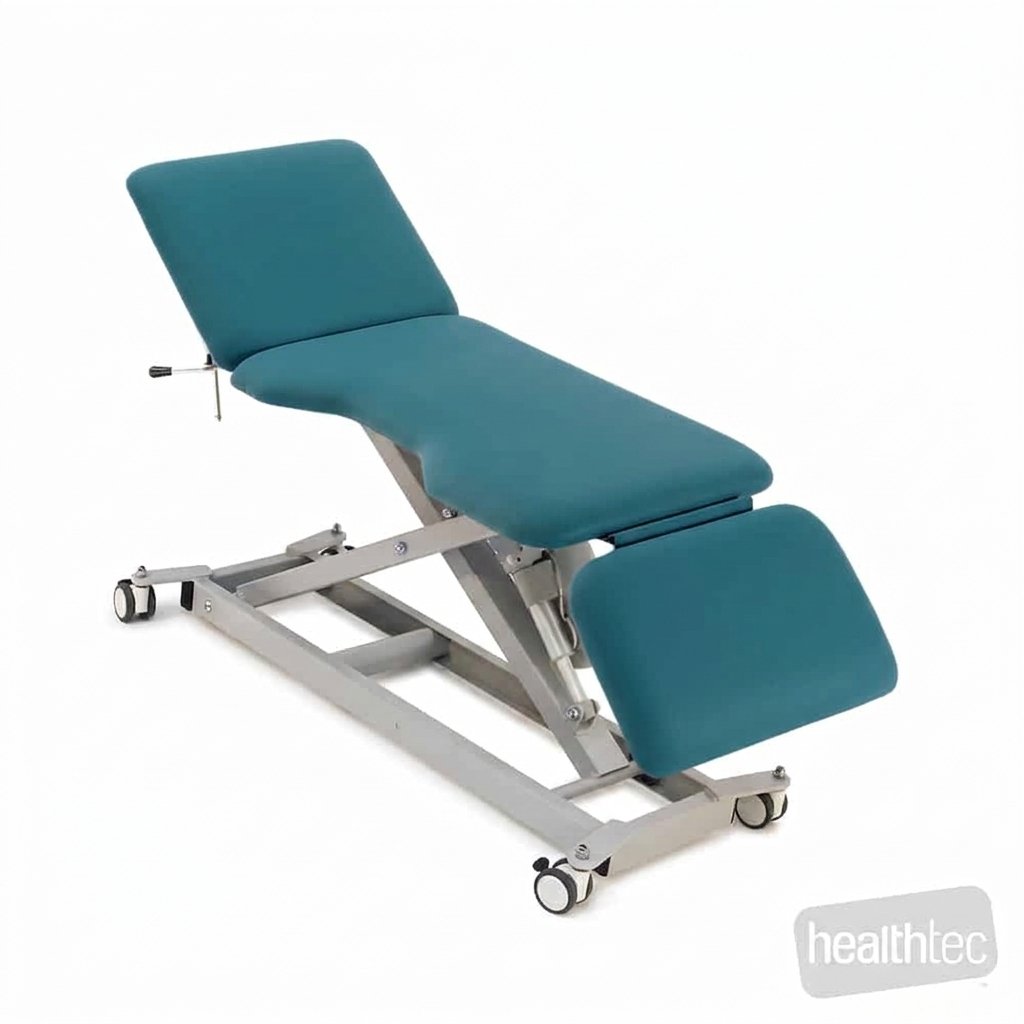

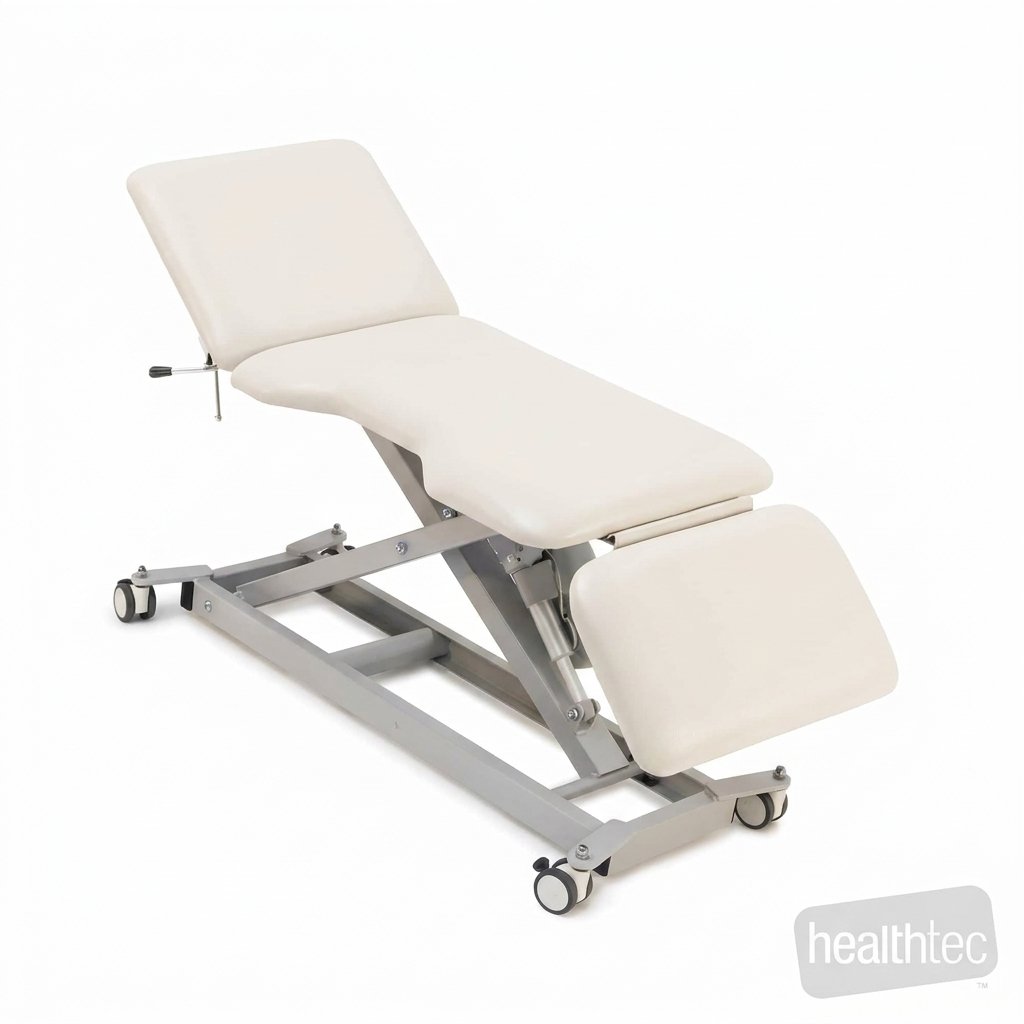

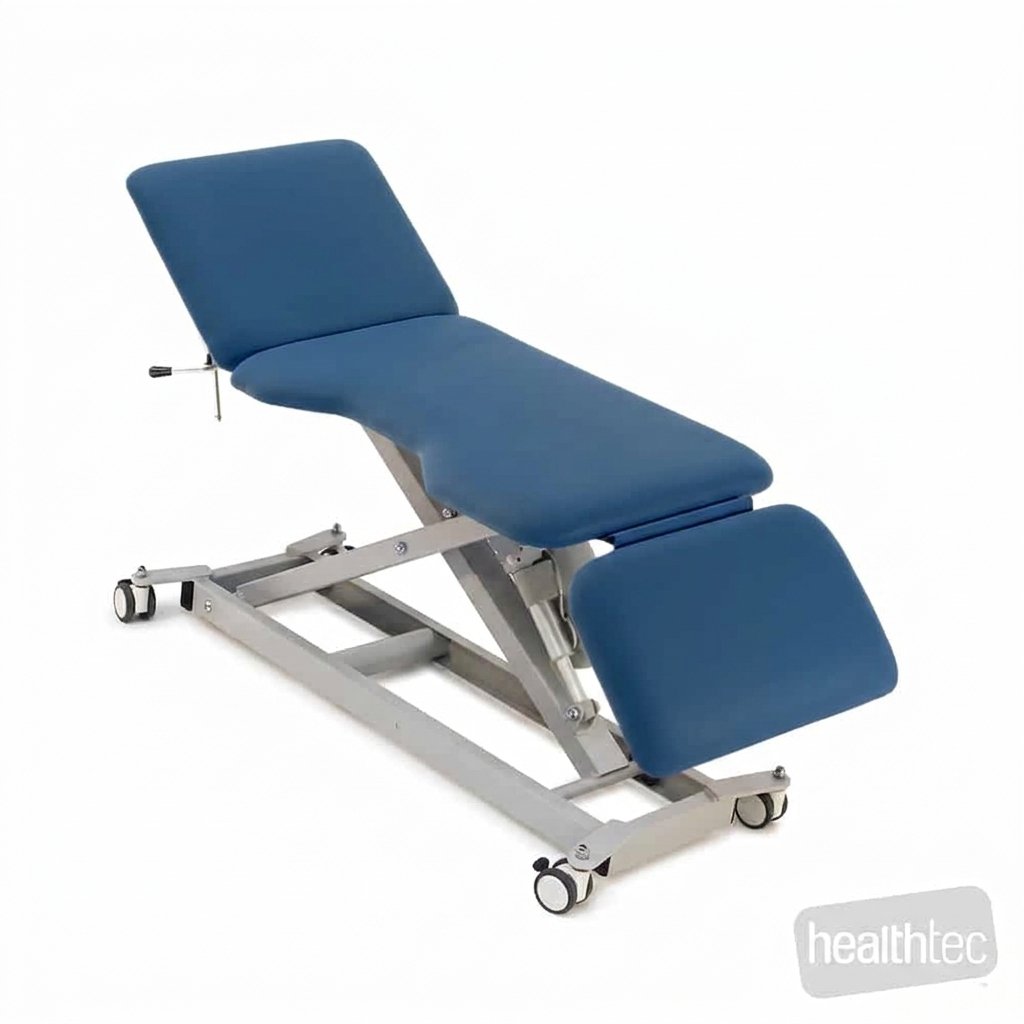

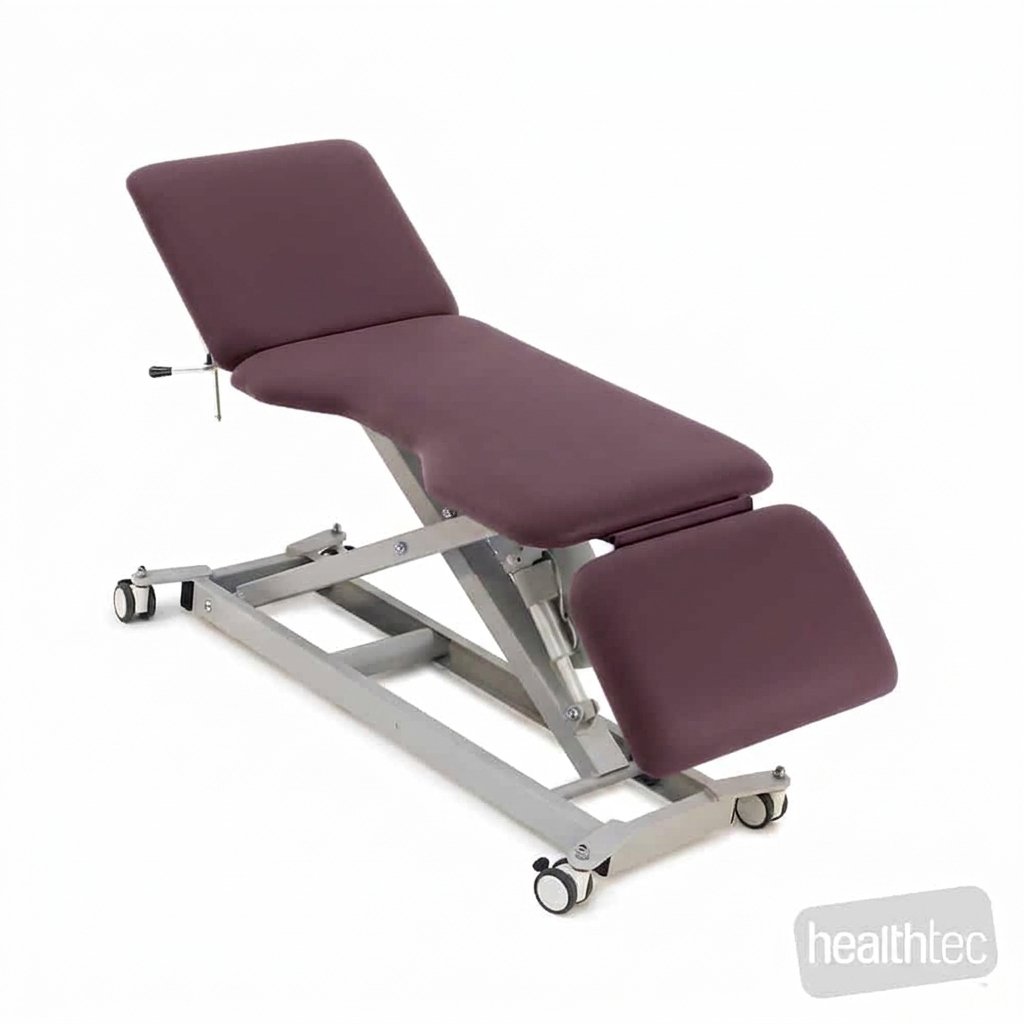

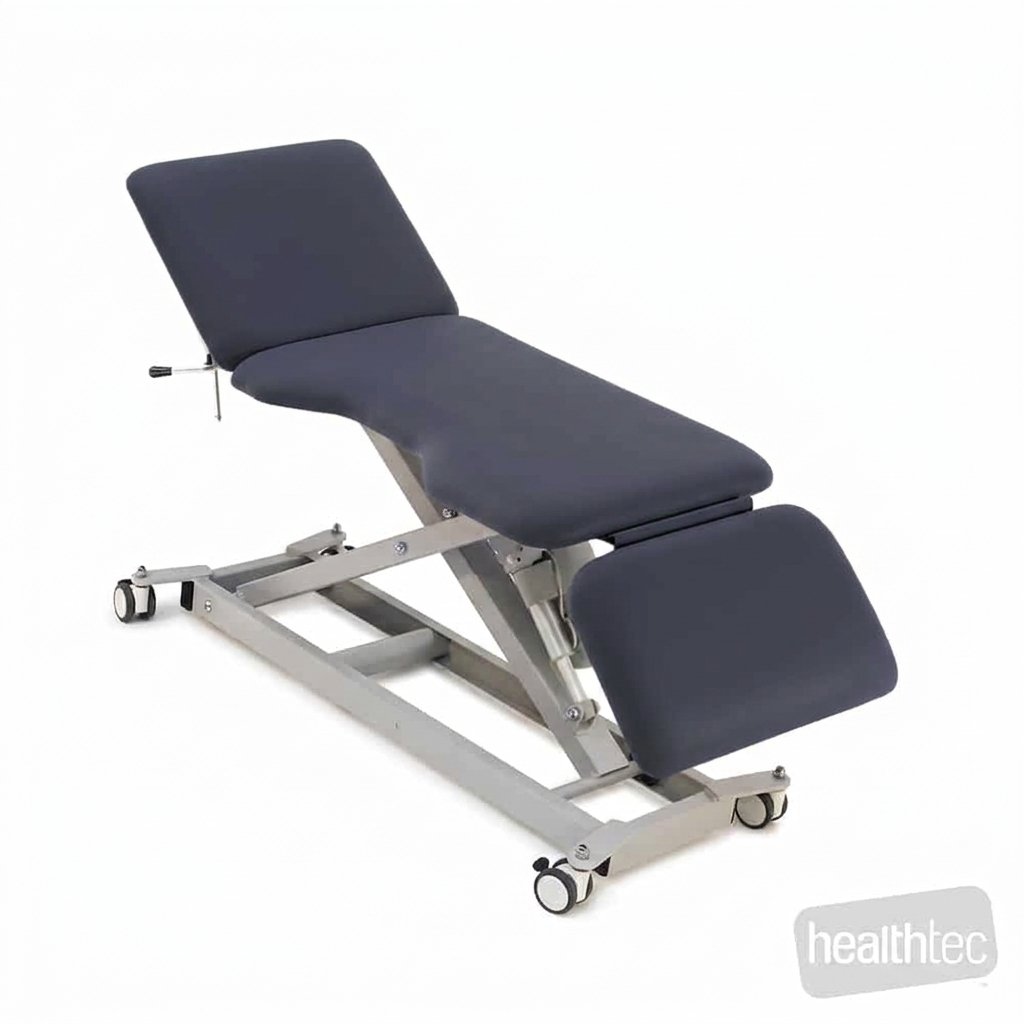

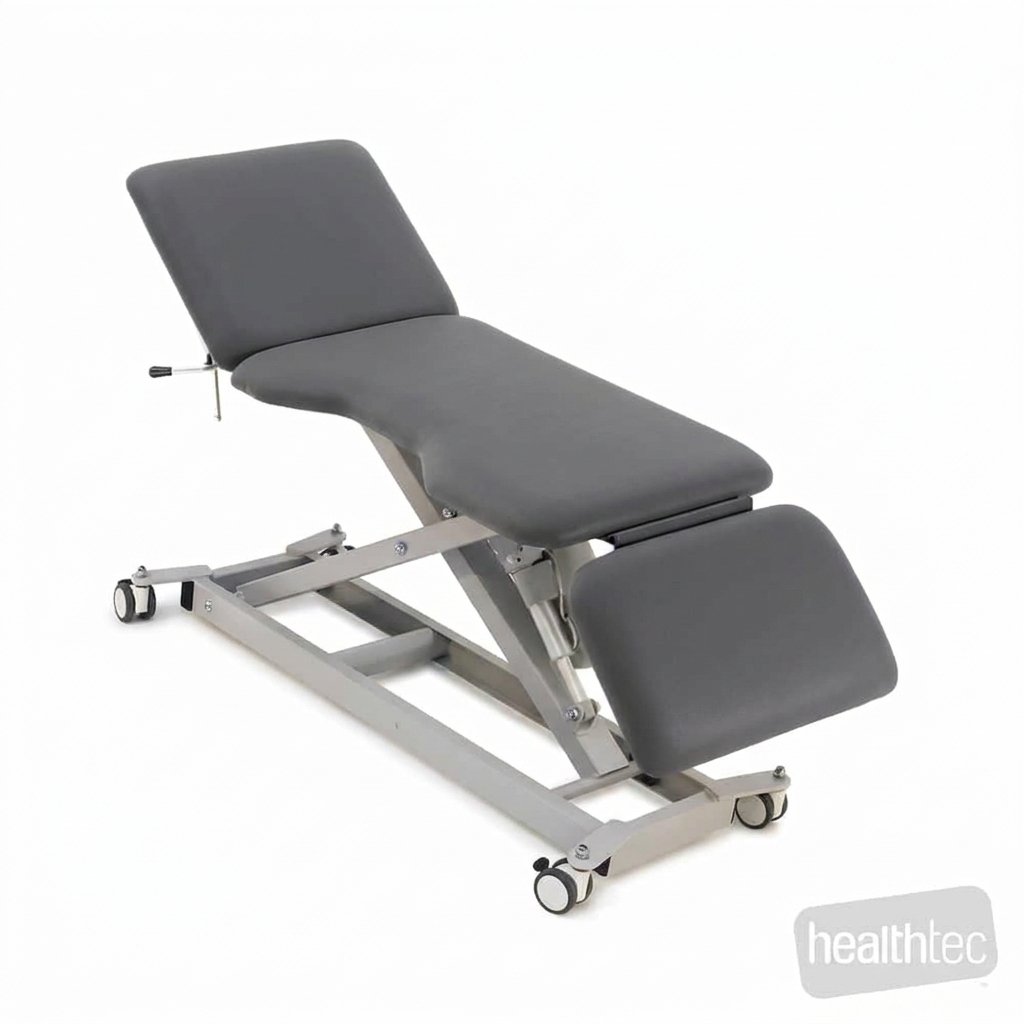

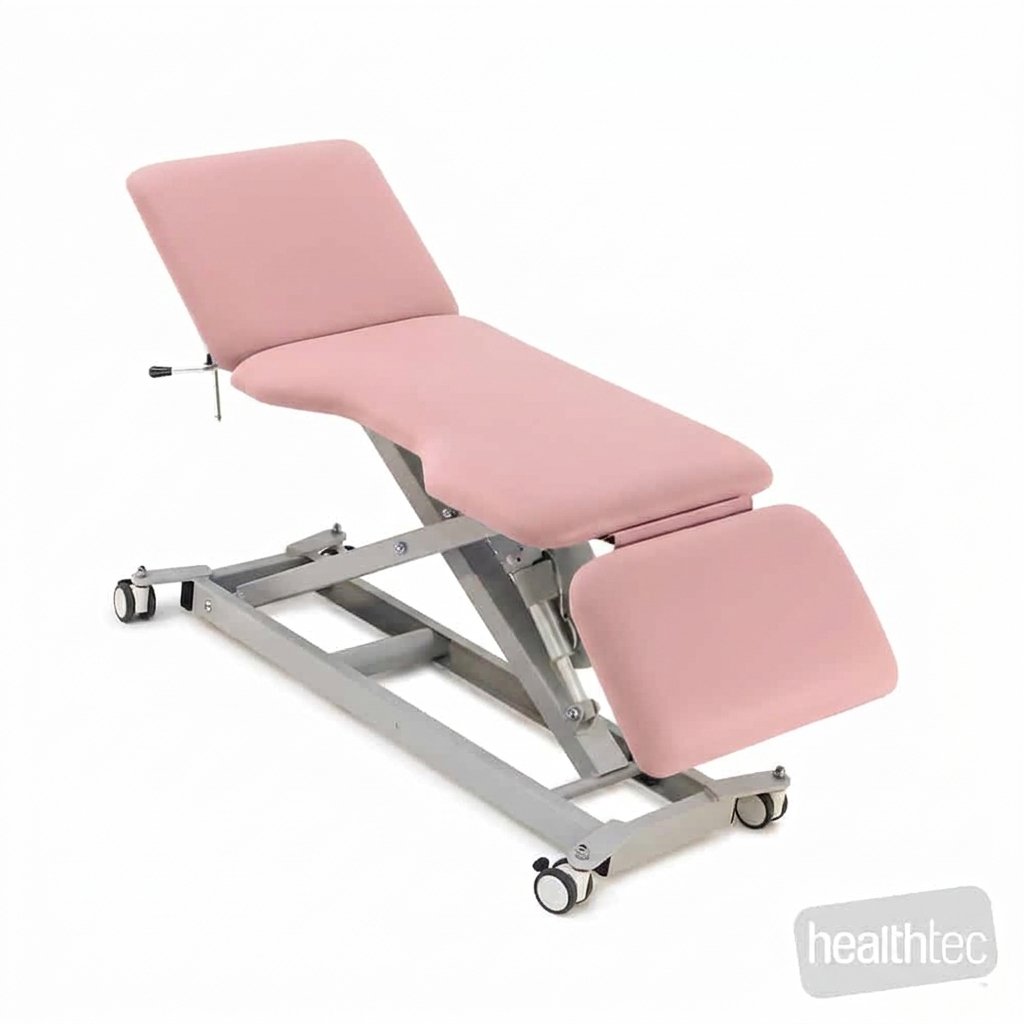

LynX Ultrasound Examination Table - Three Section - Cutout - Electric Backrest
LynX Ultrasound Examination Table - Three Section - Cutout - Electric Backrest

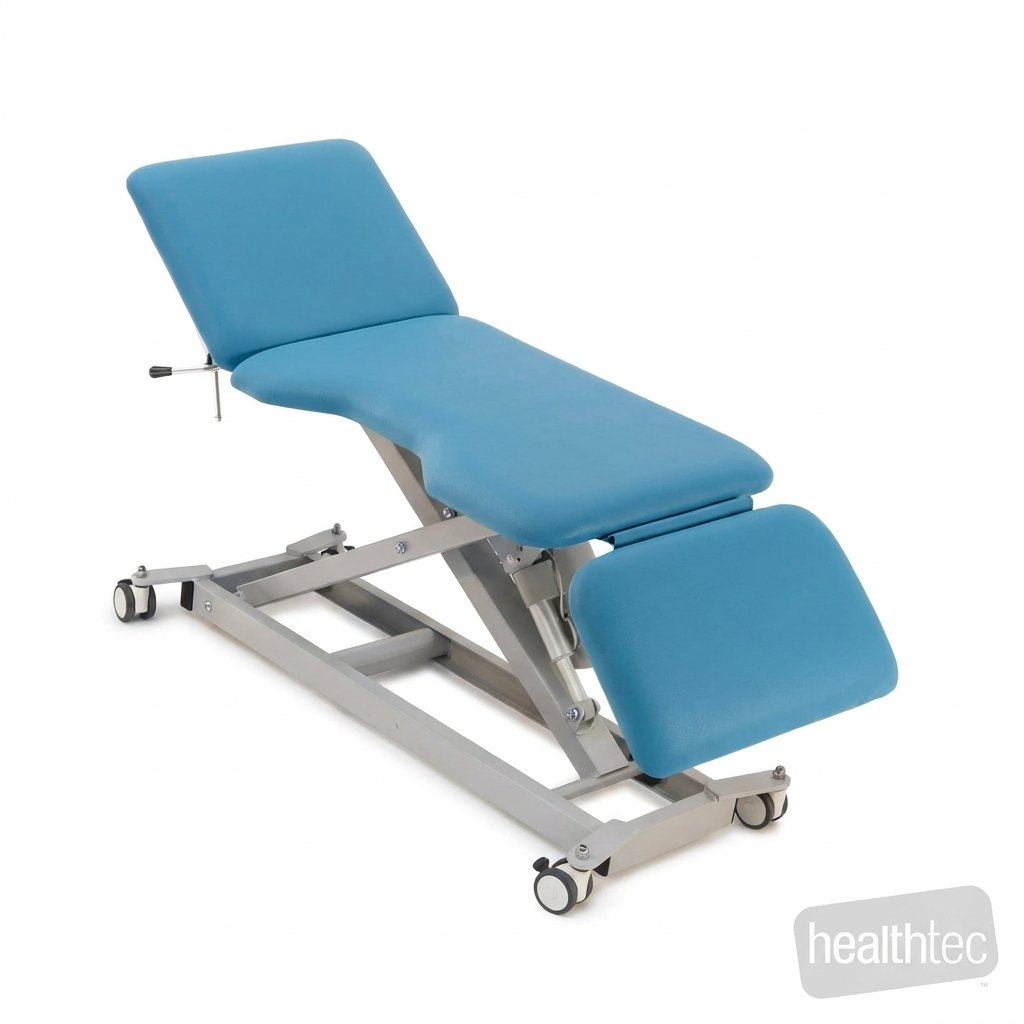

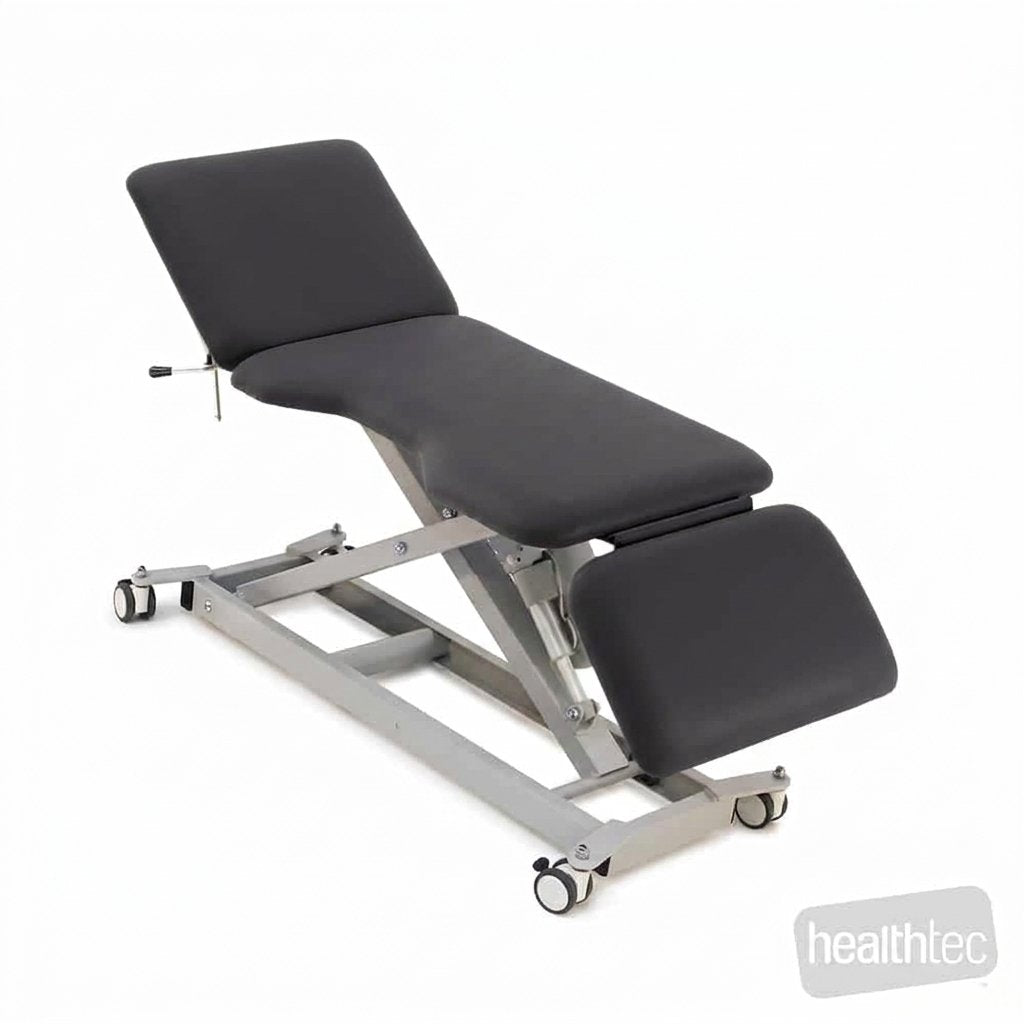

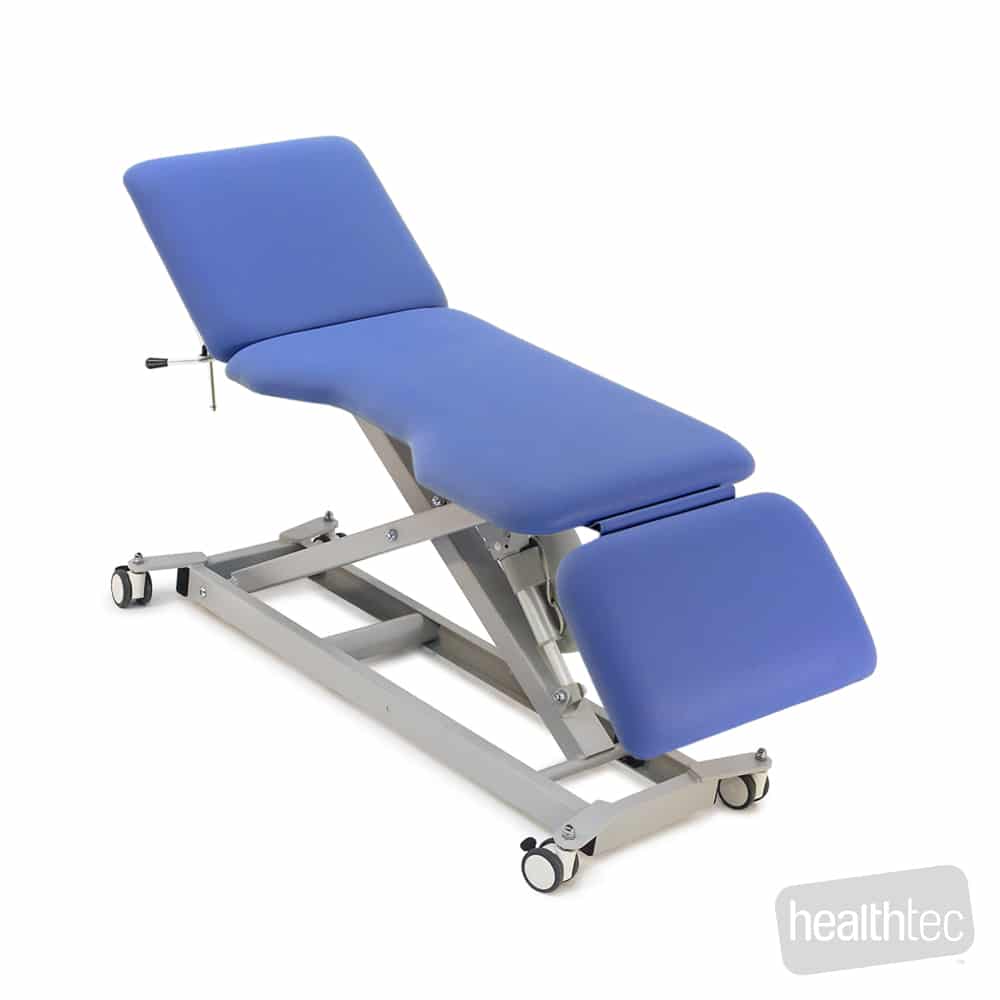

The LynX Ultrasound Examination Table is built for ultrasound imaging and diagnostic clinics that need a comfortable working environment for both sonographer and patient. This three-section table's mid-section cutout gives the sonographer closer probe access during a scan, and the electric backrest lifts and lowers on a foot switch so you can reposition a patient without stepping away.
Lead time: Custom built to order by the manufacturer. Please allow up to 8 weeks for dispatch. Because it is made to your specification, this item is non-refundable for change of mind. Your rights under the Australian Consumer Law for faulty goods still apply.
Built for the imaging room
- Mid-section cutout - opens up probe access for the sonographer during a scan, on the same three-section upholstery layout as the standard table.
- Electrically adjustable backrest - motorised via foot switch, so you can reposition the patient for a scan without leaving their side.
- Electric height adjustment with foot switch - hands-free height control between patients, sets the working height from 450mm to 950mm.
- Manually adjustable footrest - flat to +30/-90 degrees, for precise patient positioning during a scan.
- X-frame lift action - engineered to minimise pinch and crush points during height adjustment.
- Heavy duty individually lockable castors - each wheel locks independently, keeping the table stable during imaging.
- Durable powder-coated, rust-resistant frame - built for repeated daily use in a clinic environment.
- Antimicrobial vinyl, CFC-free foam - easy-clean upholstery over 50mm Dunlop foam, suited to high-turnover imaging rooms.
Designed and manufactured in Australia, with a 10-year structural warranty, 5-year electrical warranty and 3-year upholstery warranty (parts only).

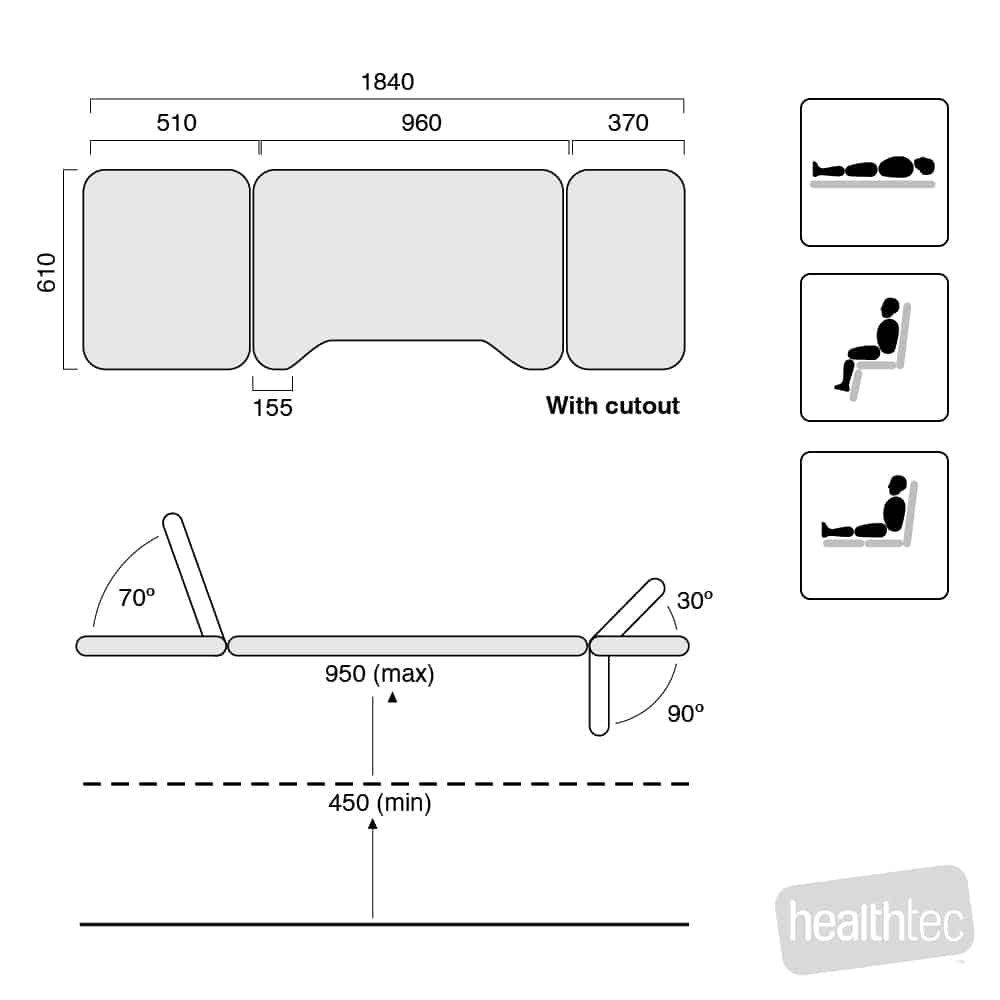

Specifications
| Maximum working load | 400kg (stationary) |
| Maximum lifting capacity | 250kg (moving) |
| Minimum working height | 450mm |
| Maximum working height | 950mm |
| Table width | 610mm, 660mm or 710mm |
| Table length | 1840mm |
| Cushioning | 50mm foam |
| Top | Mid-section cutout for probe access |
| Controller | Foot switch |
| Base / castors | LynX frame, individually lockable castors |
| Backrest | Electrically adjustable, foot switch (motorised upgrade) |
| Footrest | Manual adjustment, flat to +30/-90 degrees |
| Product weight | 80kg |
| Packed dimensions | 205 x 85 x 65cm |
Documents
Fitting out an ultrasound imaging clinic and want to check colour options or a bulk order? Email the Mobility Shop Direct team at support@mobilityshopdirect.com.au.
Upholstery colours
The LynX Ultrasound Examination Table - Three Section - Cutout - Electric Backrest is upholstered in Austex Studio+ vinyl, and you choose from 12 popular colours when you order. The manufacturer offers other Austex Studio+ colours too, so contact us if you'd like one that isn't listed. The colour photos on this page are AI-generated previews made from the manufacturer's own product photo, so treat the on-screen colour as a guide only. See the full official palette on the Austex Studio+ colour page.
Delivery
Standard delivery is included in the price. It is made to order and ships direct from the manufacturer.
Tailgate delivery (included)
A one-person delivery to the nearest entrance of your building. The packed table is heavy, so have at least two people ready to move it inside. Packaging isn't removed with this service. The carrier is asked to phone before arrival, but that call isn't guaranteed.
Premium 2-man delivery (+$300)
Two people deliver the table into your room, unpack it, put it in position and take all the packaging away. A delivery time is arranged with you beforehand. Choose Premium 2-Man Delivery from the Delivery options above, and tell us about any access problems such as spiral stairs, narrow doorways or low ceilings, because the price doesn't cover them.
Delivery times and unpacking
Deliveries are made by external carriers between 9am and 5pm, so an exact time can't be given. It arrives on a pallet, wrapped to protect it in transit. Read the service manual that comes with it before first use.
Prefer your own freight company? Email us to arrange it.
Warranty
The manufacturer's warranty covers parts only:
- 10 years structural: steel frame parts
- 5 years electrical: actuator motors, control box, hand switch and foot switch, where fitted
- 3 years upholstery: fabric defects, colour inconsistency, foam compression and stitching
- 3 years paint: paint adhesion on steel parts
- 1 year parts: castors, gas struts, brackets, hinges, fasteners and bearings, where fitted
- 1 year batteries: backup batteries, where fitted
The warranty doesn't cover loads above the rated capacity, everyday wear or impact damage, poor maintenance, servicing by non-approved technicians, power surges or storms, or upholstery damaged by unsuitable cleaners or chemicals.
