Oxygen Tank Carrier for A-Framed Rollators

Durable, Practical and Secure Oxygen Tank Carrier for Walkers.

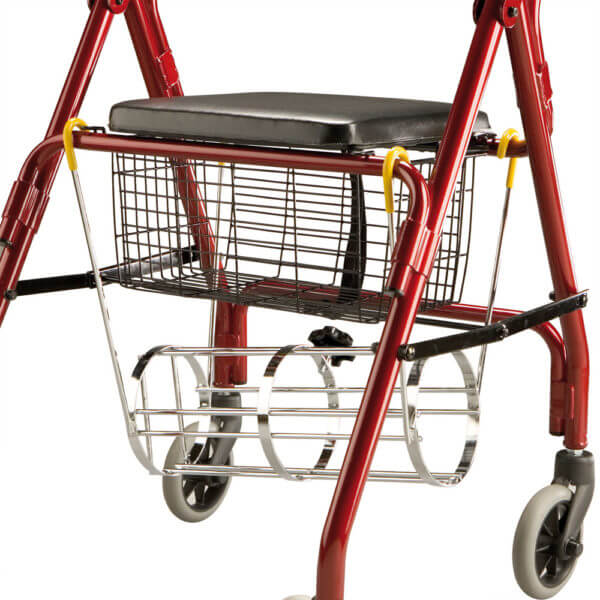

The Oxygen Tank Carrier for Walkers is designed to fit under the seat of most 'A' Frame Wheeled walkers, and suits oxygen cylinders up to 125mm in diameter ('C' Size). Carrier is angled slightly for optional oxygen supply and to prevent the oxygen bottle from sliding out.

Oxygen Tank Carrier Features:

• Chromed steel holder supports oxygen cylinder
• Attaches under seat frame by four plastic coated hooks
• Removes easily for storage and transportation
• Suits type C oxygen cylinders

How to Attach the Oxygen Bottle Carrier

• Remove the wire shopping basket (if applicable) and slightly fold the wheeled walker.
• Position the oxygen bottle carrier with the open end facing your prefered side.
• Hook the carrier onto the crossbars underneath the seat; 2 hooks over rear bar followed by 2 hooks over front bar.
• Unfold the wheeled walker and check oxygen bottle carrier is secure before closing the seat.

How To Install Oxygen Bottle

• Unscrew the locking pin at the top of the carrier until the rubber stopper is flush with the edge (do not remove completely).
• Slide the oxygen cylinder into the open end of the carrier, valve end first (so valve is positioned against the closed end of the carrier.)
• Tighten the locking pin until the rubber stopper sits firmly against the oxygen bottle to secure.
• Check the bottle is secure and fully inserted before use.

How to Choose Size of Oxygen Bottle Carrier

• Choose Standard Size if the Overall Width of your A Framed Walker is between 56-62cm such as Cruiser, Territory, Voyager, Explorer, Scout, Trekker, Rover Walkers.
  Choose Large Size if the Overall Width of your A Framed Walker is between 63-73cm such as Caravan, Heavy Duty Trekker and Galaxy Walkers.
